EDGE ELEVATOR PRODUCTS: Submersible power units

Get an Estimate

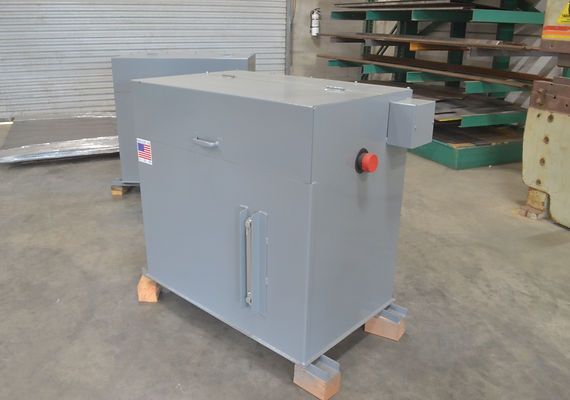

submersible Power Units


EDGE hydraulic power units are manufactured using high-quality materials and heavy-gauge steel to deliver a rugged, long-lasting pump system built for demanding elevator applications. Designed with durability and performance in mind, each unit is engineered to provide reliable operation and consistent efficiency over time. Standard configurations include premium components such as a Maxton valve, silencer, and oil level sight gauge, ensuring dependable functionality right out of the box. For added flexibility, every power unit can also be customized to meet specific project requirements, allowing contractors and engineers to tailor performance, sizing, and configurations to match the exact needs of their installation.

  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button

Standard Equipment

  • Motor: 15-50HP
  • Pump: 24-253 GPM

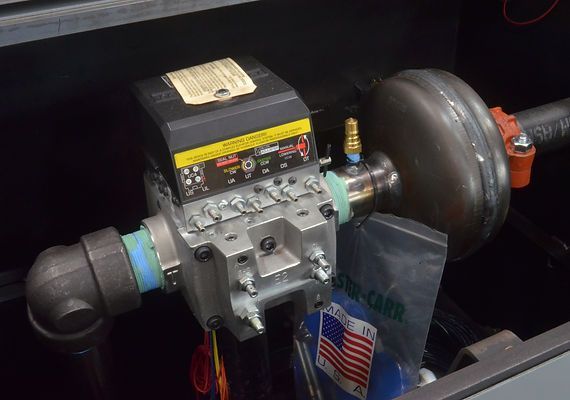

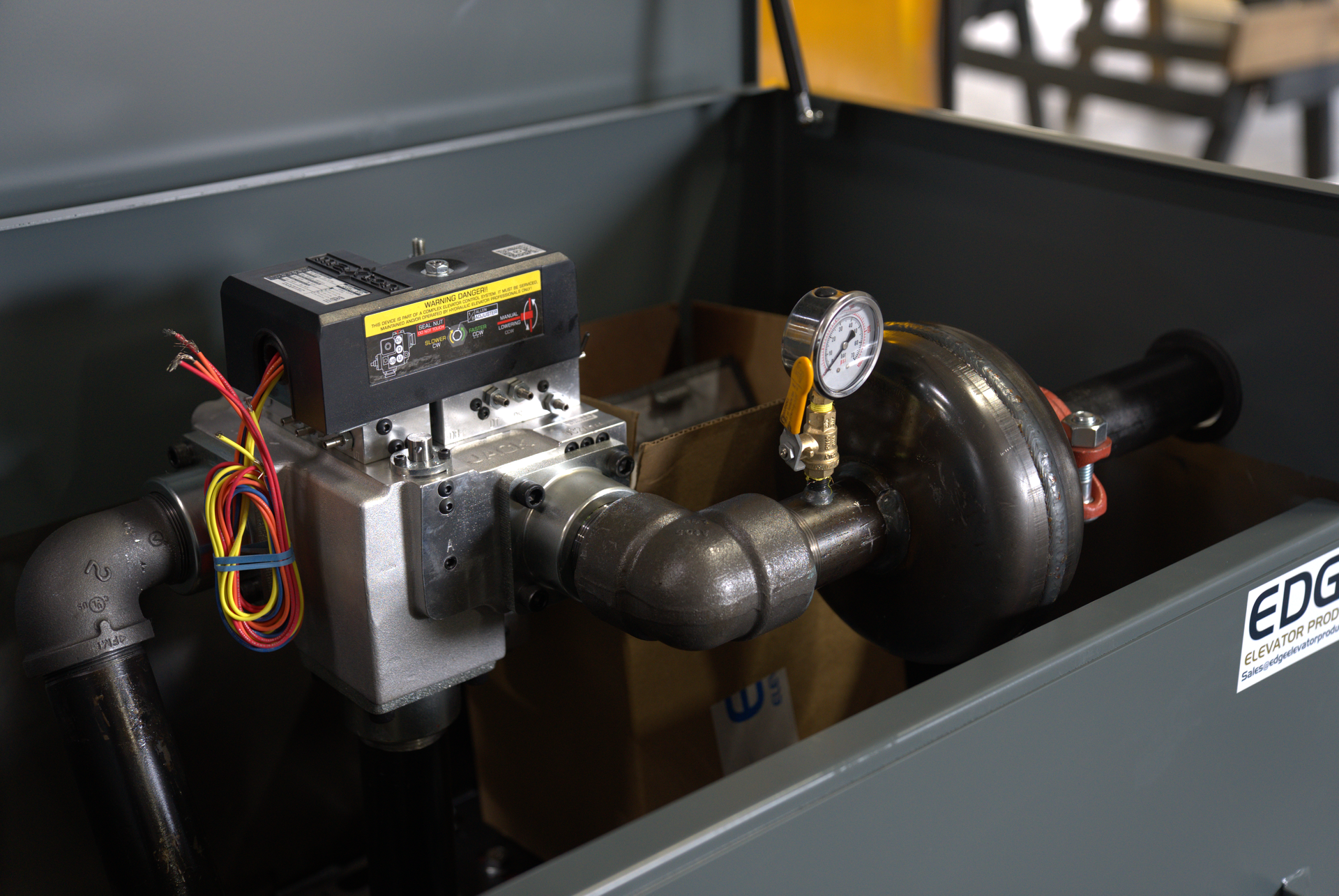

  • Maxton Valve (internally mounted)
  • Chamber Muffler

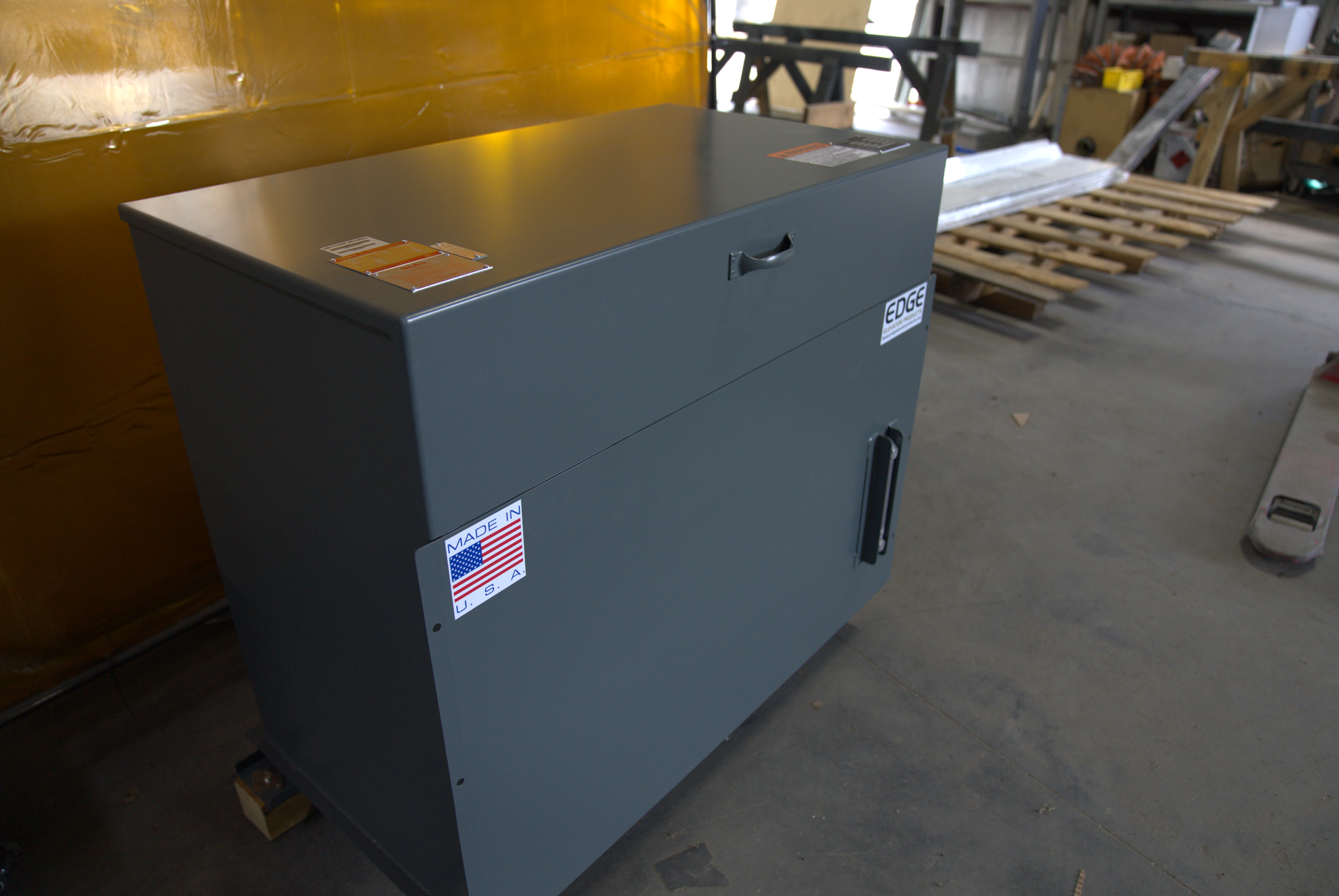

  • Hinged Lid
  • Full Oil Level Sight Gauge
  • Mounted junction box
  • Heavy Duty 12 gauge metal
  • Isolation Feet

Optional Equipment

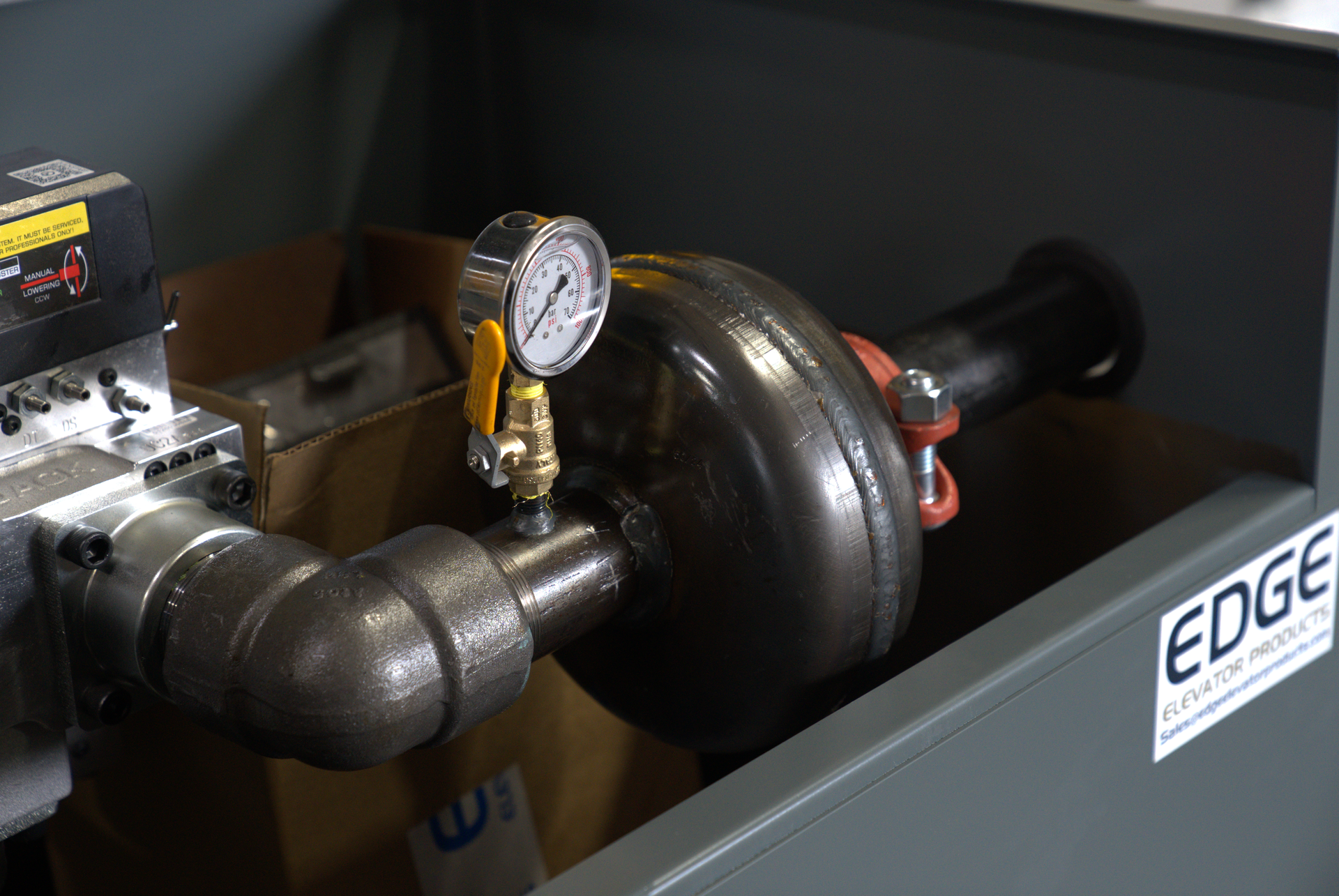

  • Pressure Gauge
  • Low Oil Level Switch
  • Tank Heater
  • Oil Temp Switch
  • Shut-Off Valve
  • Isolation Coupling
  • Grooved or Threaded
  • Air Bladder Silencer
  • Paint Color
