EDGE ELEVATOR PRODUCTS: door panels

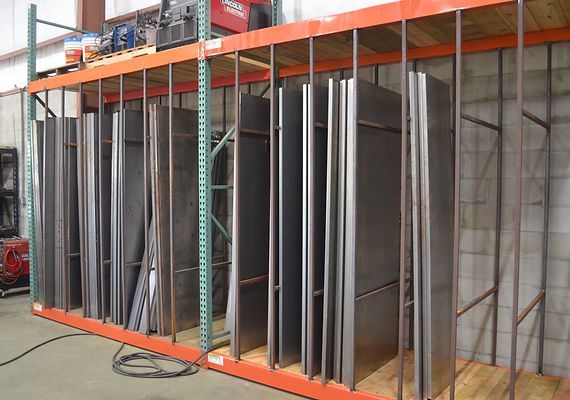

Door Panels
EDGE manufactures hoistway and car doors in a wide range of configurations to meet the needs of both new installations and modernization projects. Standard size openings are available with expedited production options for select requirements, as well as non-rush lead time schedules depending on project scope. In addition to standard offerings, EDGE provides custom opening sizes, along with pre-drilled or punched door options to streamline on-site installation and improve project efficiency. Each door is built with precision and consistency to ensure reliable performance, compatibility, and long-term durability across a variety of elevator applications.
FEATURES
- Top & bottom steel channels, custom-drilled for any door equipment
- Available for UL-labeled openings up to 9’ in height
- Available in all speeds
- Can accommodate various types of equipment
- Available in multiple design configurations to suit your preferences
SPECIFICATIONS
- 16-gauge cold rolled steel wrapped with stainless steel
- Reinforcement ribs welded between cold rolled steel
- Optional sound-deadening
- Available pre-punched for equipment OR with welded reinforcement plate for drilling.
- Includes hardware, gibbs, retainers, and/or fire clips; center opening doors include astragals
Standard Equipment
- #4 Brushed Satin Stainless Finish
- 16 Gauge construction
- Drilled for GAL equipment
- Nylube Door Gibbs and Fire tabs
- 20ga sight guard
- 1.5 hr UL Fire Rated
- Drilled Keyhole w/ Escutcheon
Optional Equipment
- Heavy duty Enforcer style gibbs
- Galvanized/316 construction for corrosion resistance
- Heavy duty14ga or 12ga construction
- MAC/Dover/Otis/Westinghouse or custom drill
- Applied or integral hangers
